Stockyard solutions

for livestock farmers

Is your current yard old, semi permanent or just not working how it should? You’re not alone and we’re here to help.

At Agribuilt, we offer a solid range of permanent stockyards that are built to last and designed with real farming in mind. Whether you want something off the plan or a fully custom setup, we’ll work with you to get it right.

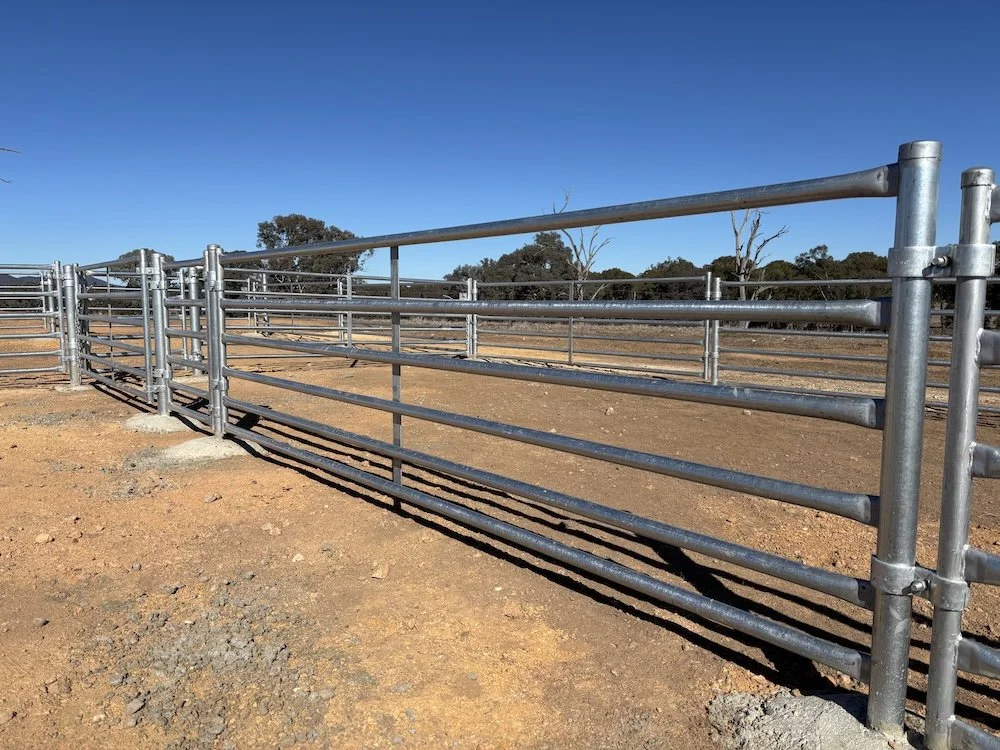

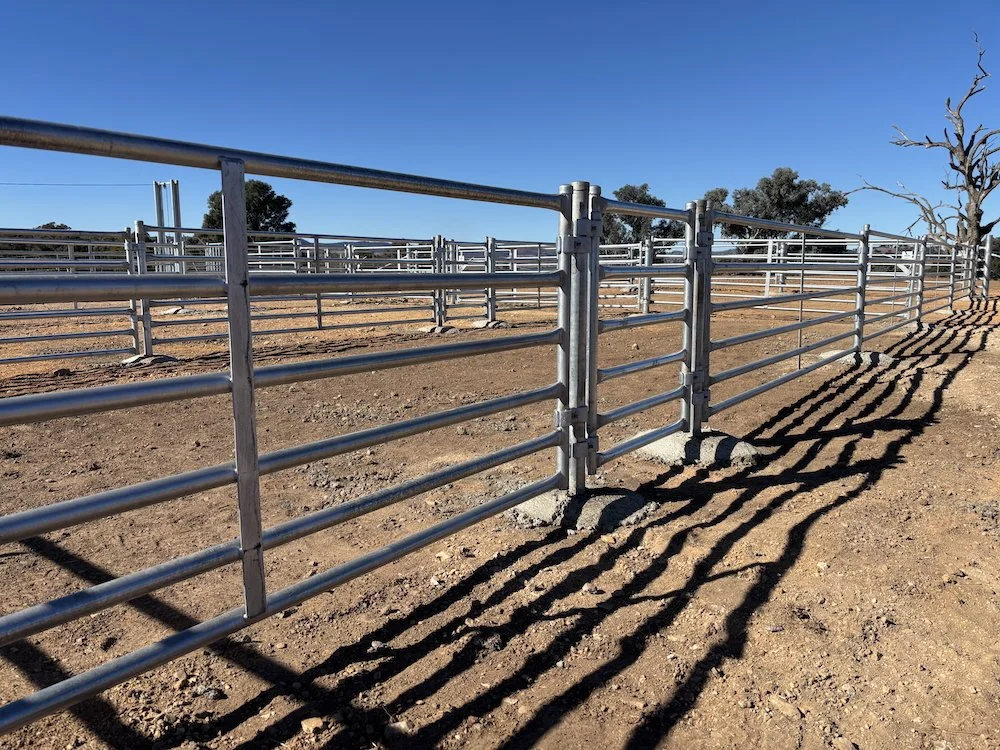

Panels & Gates

  • Our sheepyards are built from high quality galvanised steel.

  • Our panels and gates are constructed from 6 x 32nb (42od) pipe rails. All flag posts and N/L panel posts are made from 50nb (60od) pipe, with 80nb (90od) posts used wherever larger gates are installed for added support.

  • Our sheeted panels are made from 3 x 32nb pipe rails with a fully welded 1.6mm galvanised sheet.

  • 50mm x 5mm centre straps are fitted to all of our long panels and gates to provide extra strength.

  • Our products are hot drip galvanised inside and outside to improve the longevity of the materials.

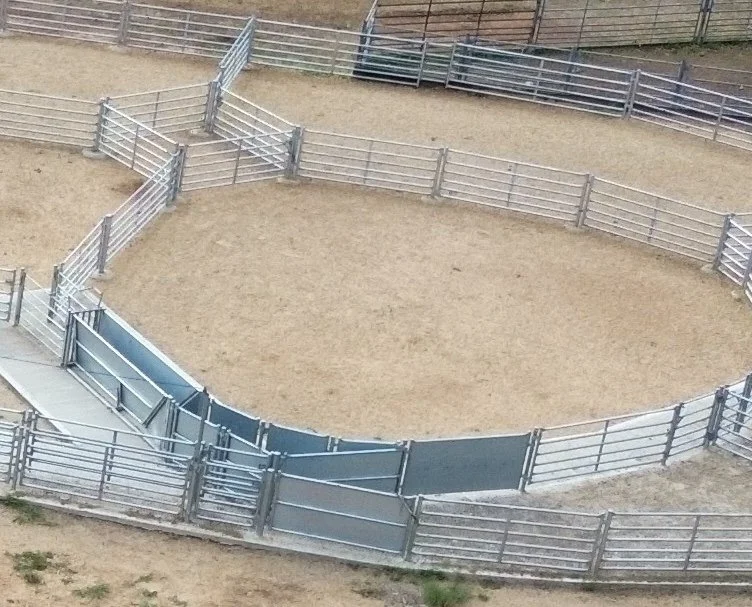

3 Way Adjustable V Draft

Our 3 way adjustable v draft is constructed from 50mm x 50mm RHS frame. With a 25nb tumble gate in front of the draft area allows for easy use. With a length of 3.25m and matched with our 1.5m draft gates, it allows the operator to have a great line of sight and time to make the right decisions.

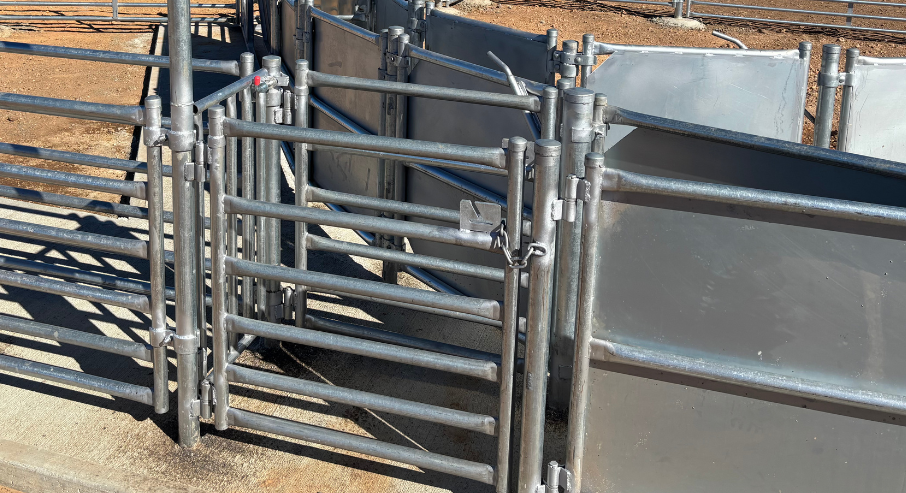

Personal Access Gates

In our designs, we allow for great access throughout the sheepyards. P.A. gates are important to make the yards more user friendly. Whether it is access to other areas of the yards or bringing drums of drench into the working areas, our 1m post centre to post centre P.A. gates allow plenty of access.

Guillotine Gates

Our guillotine gate frames are made from 4 long 50nb posts with 50mm x 5mm galvanised flat. The gate is 25nb with vertical pipe rails. Paired with a counterweight connected by an 8mm PVC coated cable, these gates make working in the yards easier.

Sheepyard Guillotine Gate

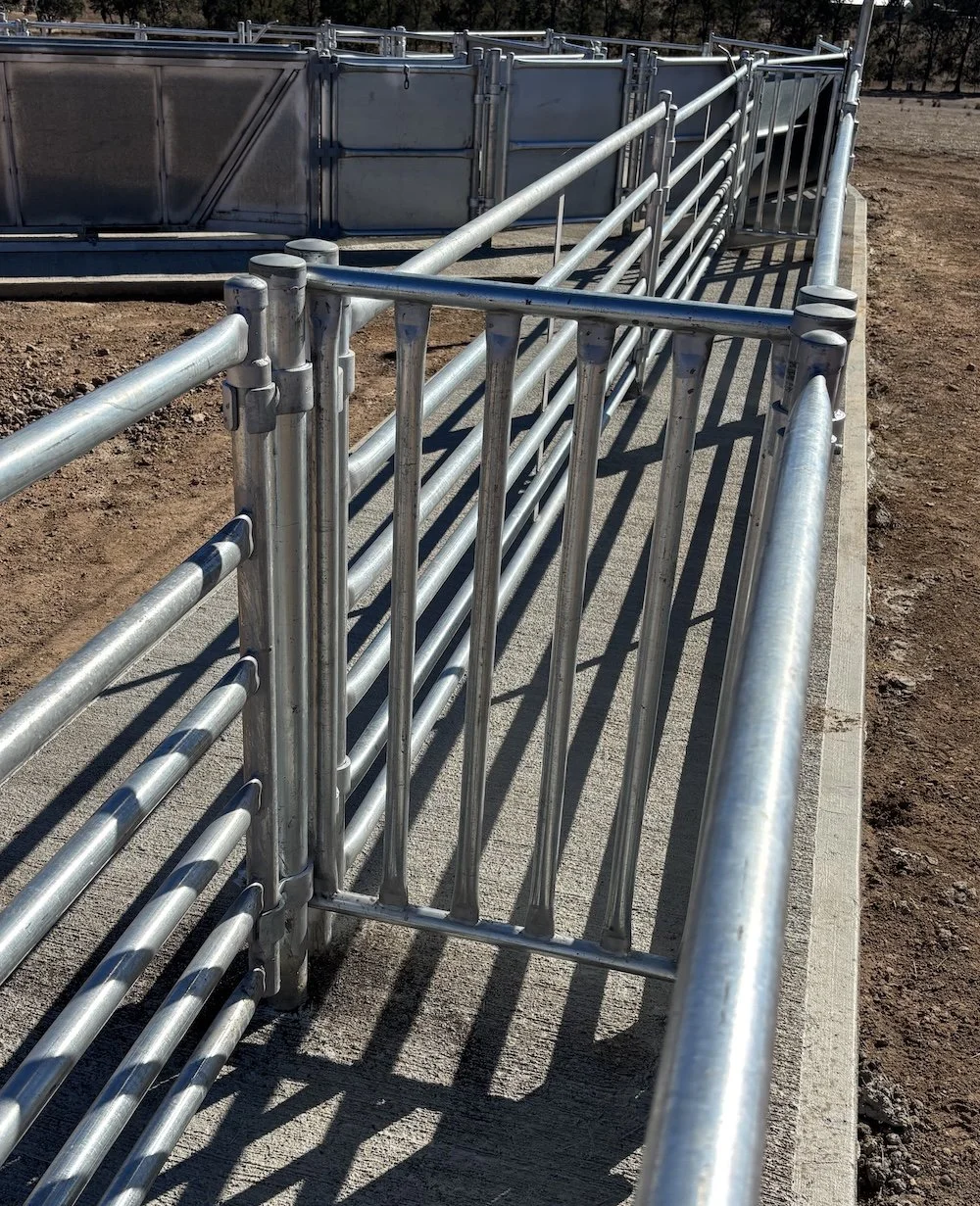

Tumble Gates

Our tumble gates are constructed from 25nb vertical pipe rails, they are set inside a 50nb 4 post frame. They swing out 90 degrees and against the draft race or handling race.

Dropbolt Catches

Dropbolt catches allow for ease of movement throughout the yards for both the operator and the livestock. Matched with a 8mm galvanised T Catch and 8mm gal chain, it gives extra security.

stockyard dropbolt catch

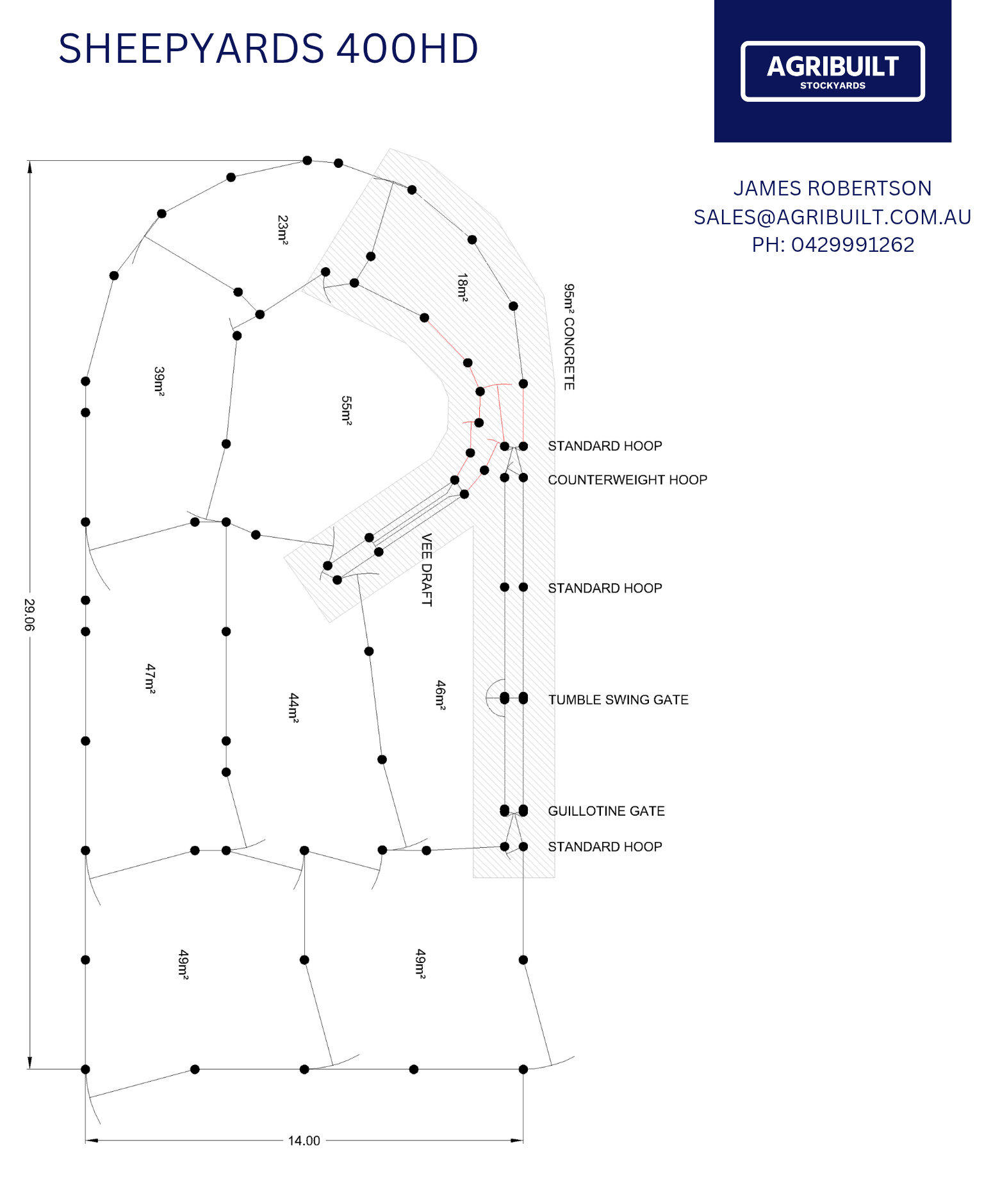

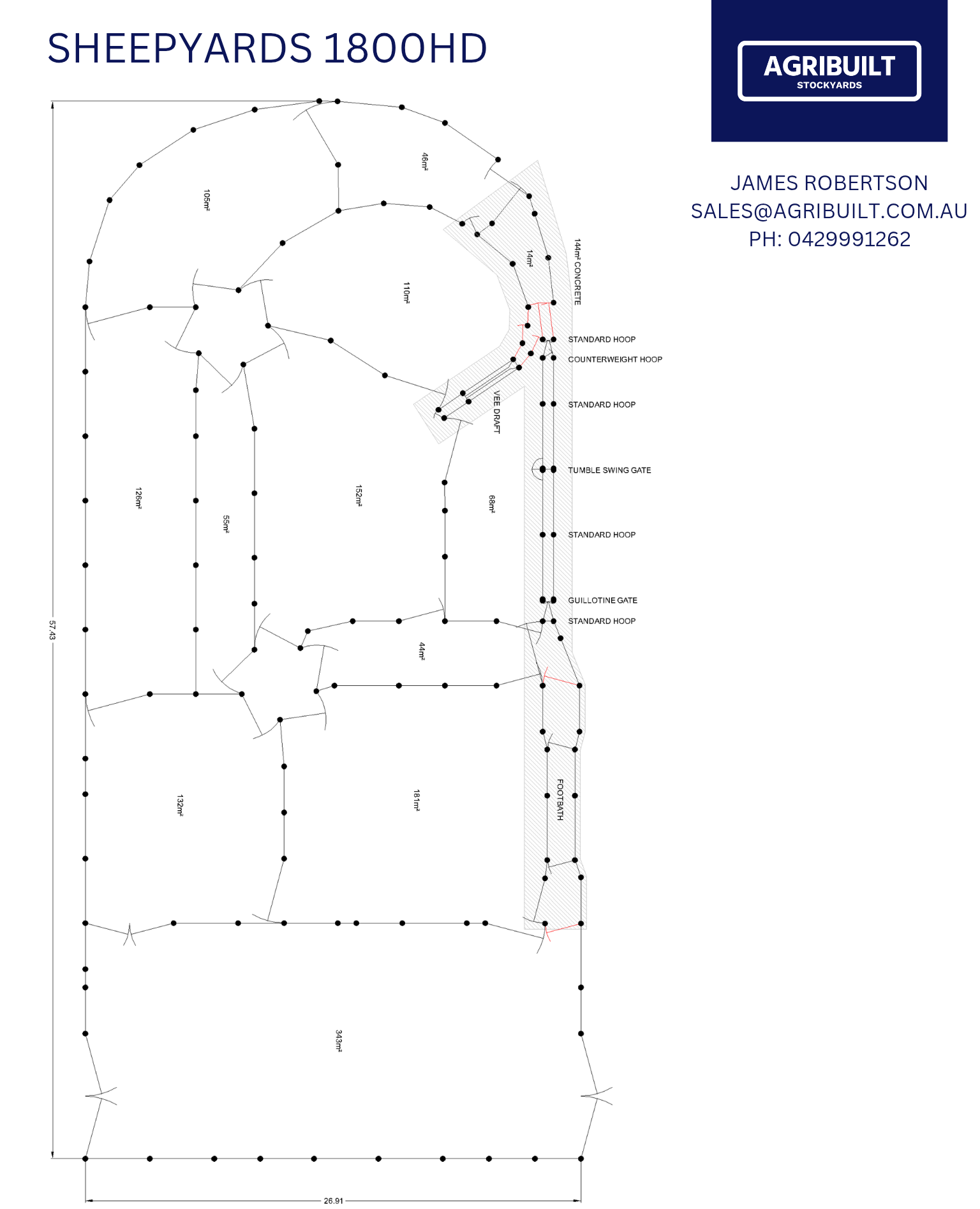

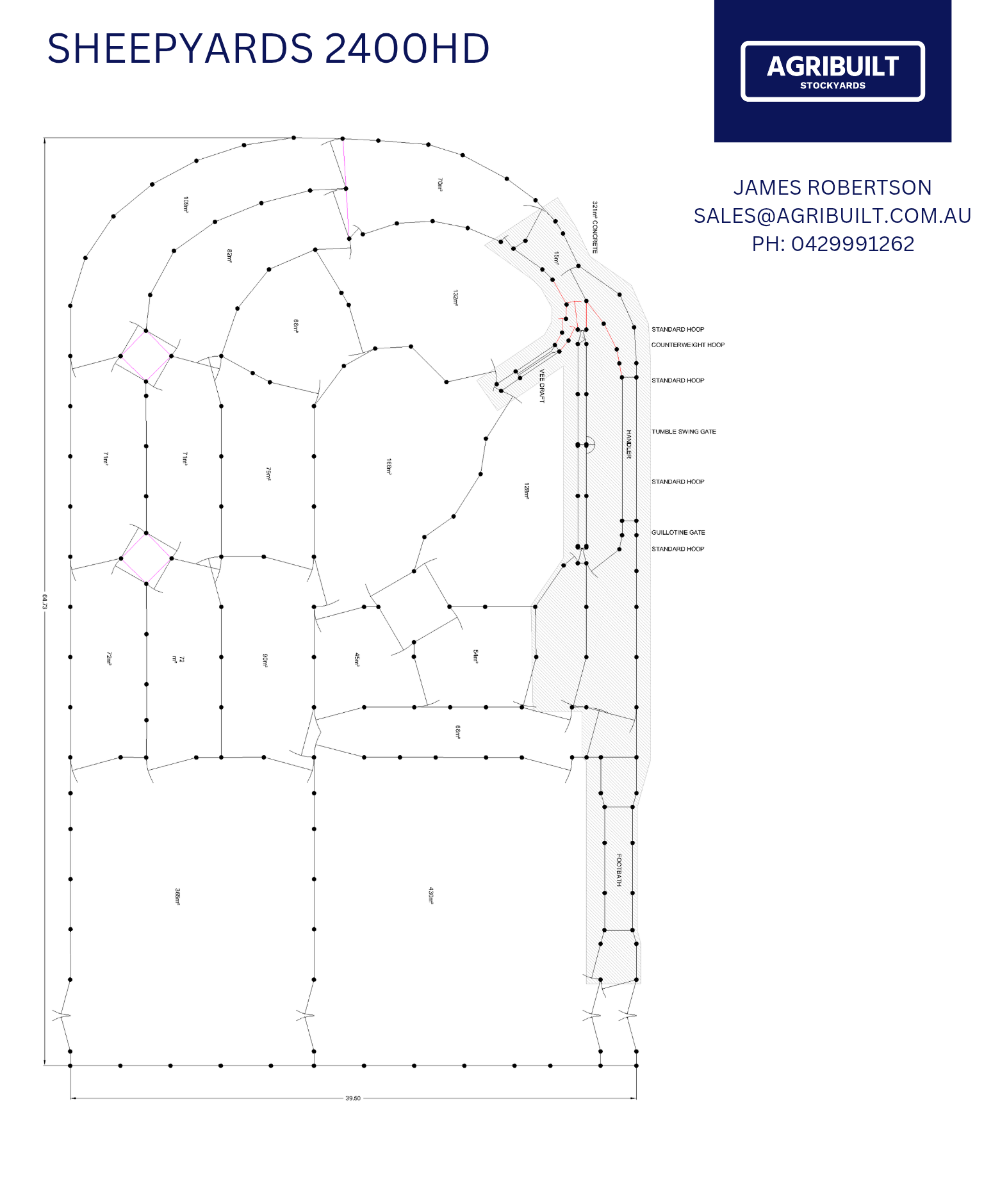

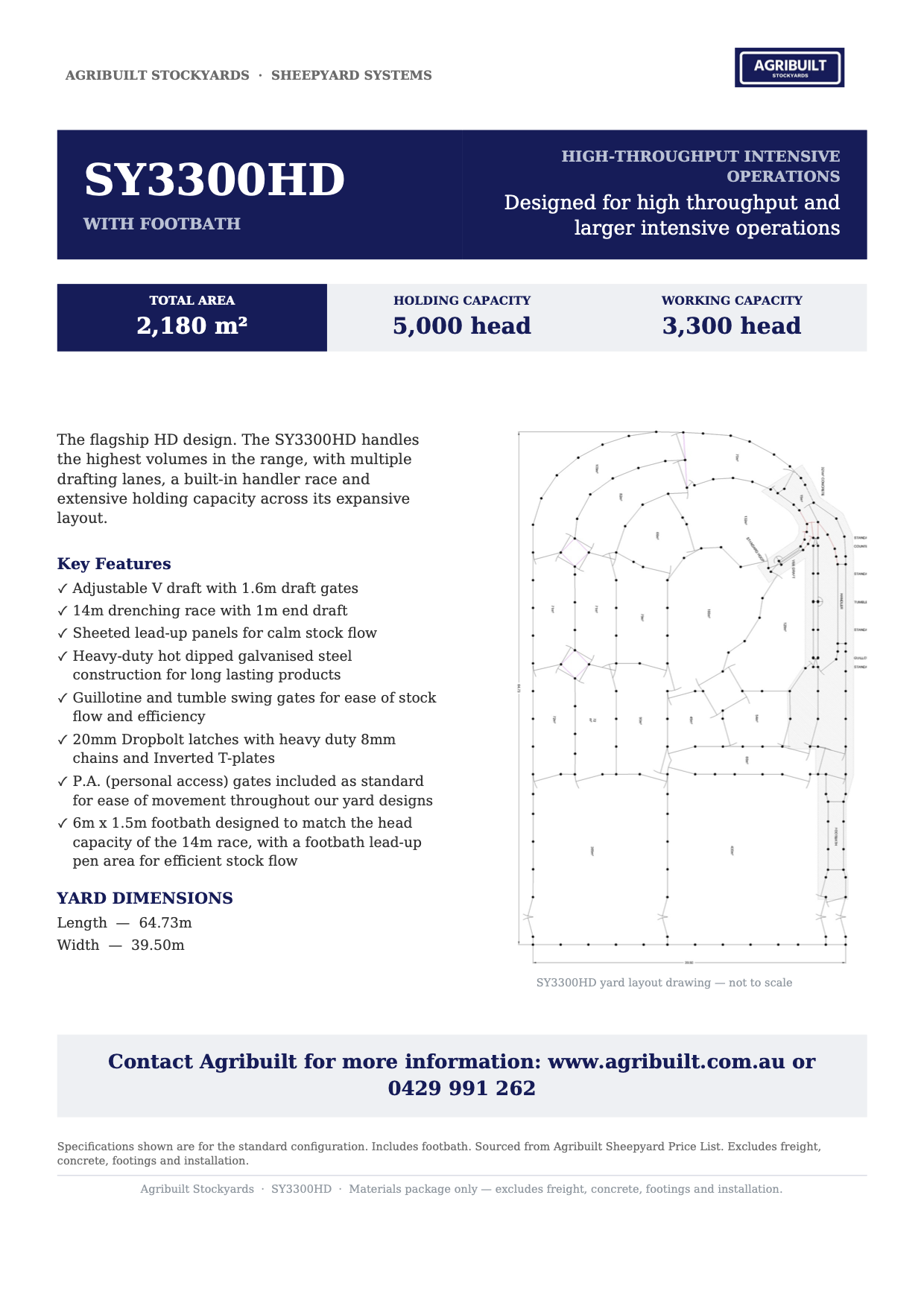

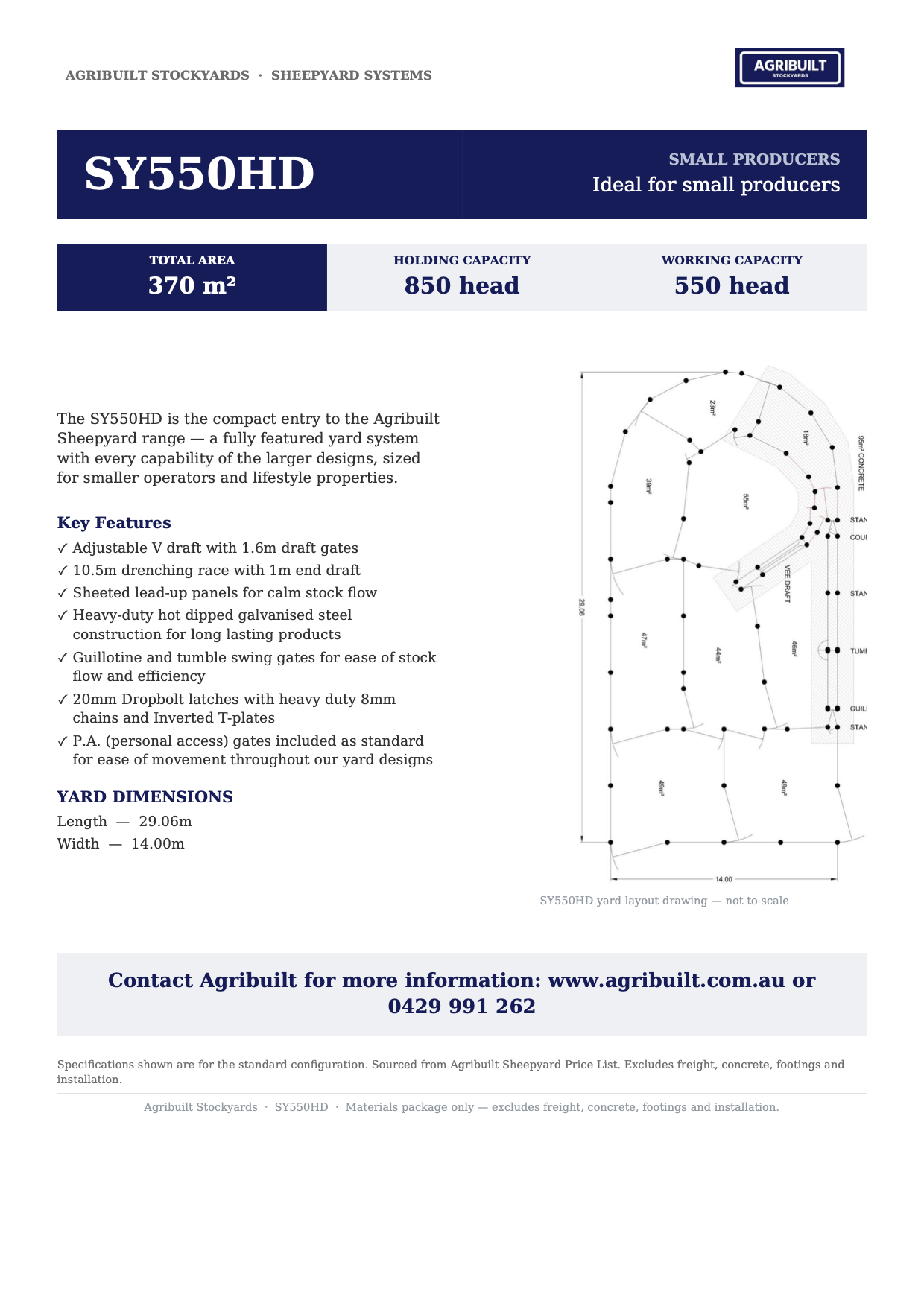

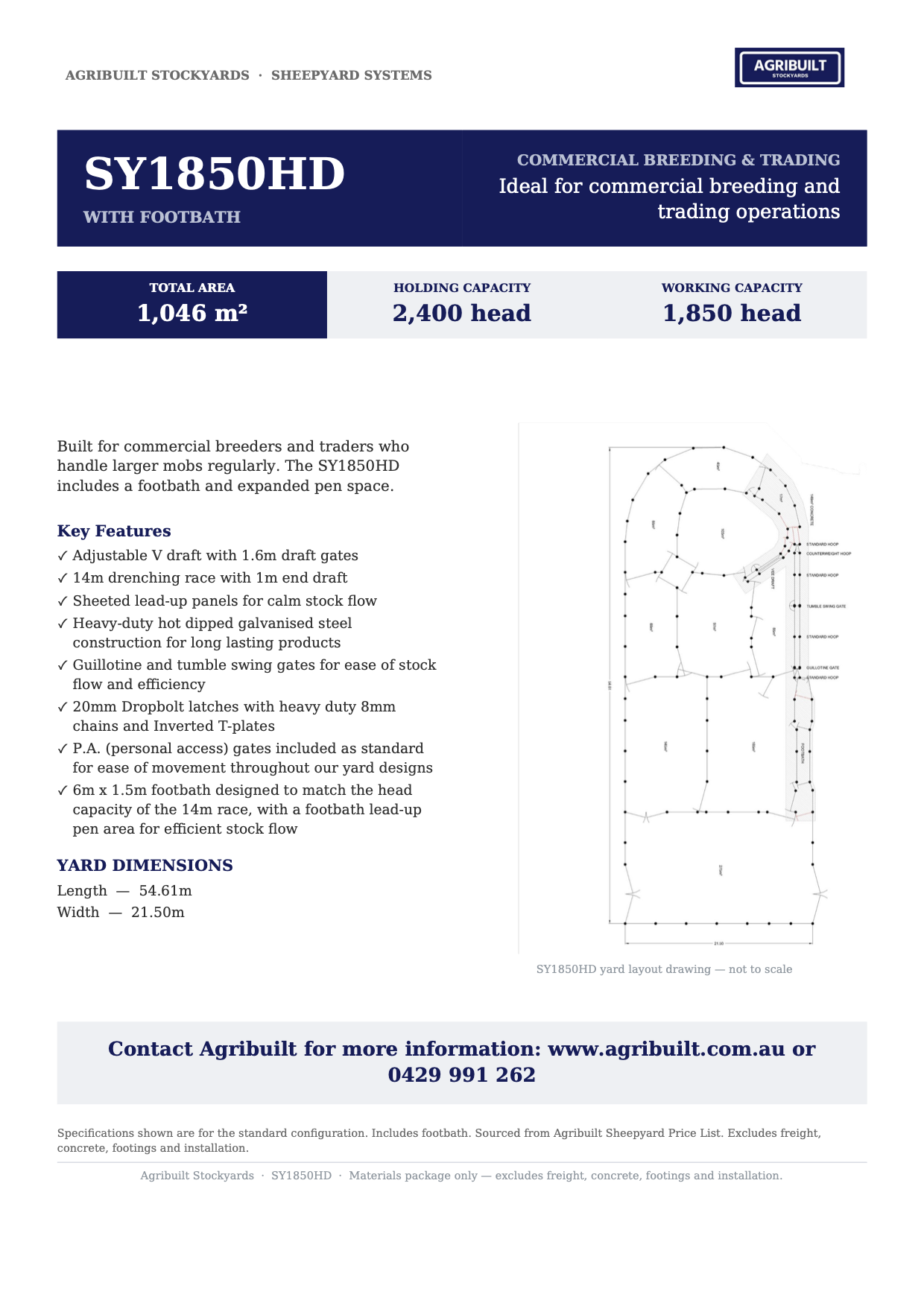

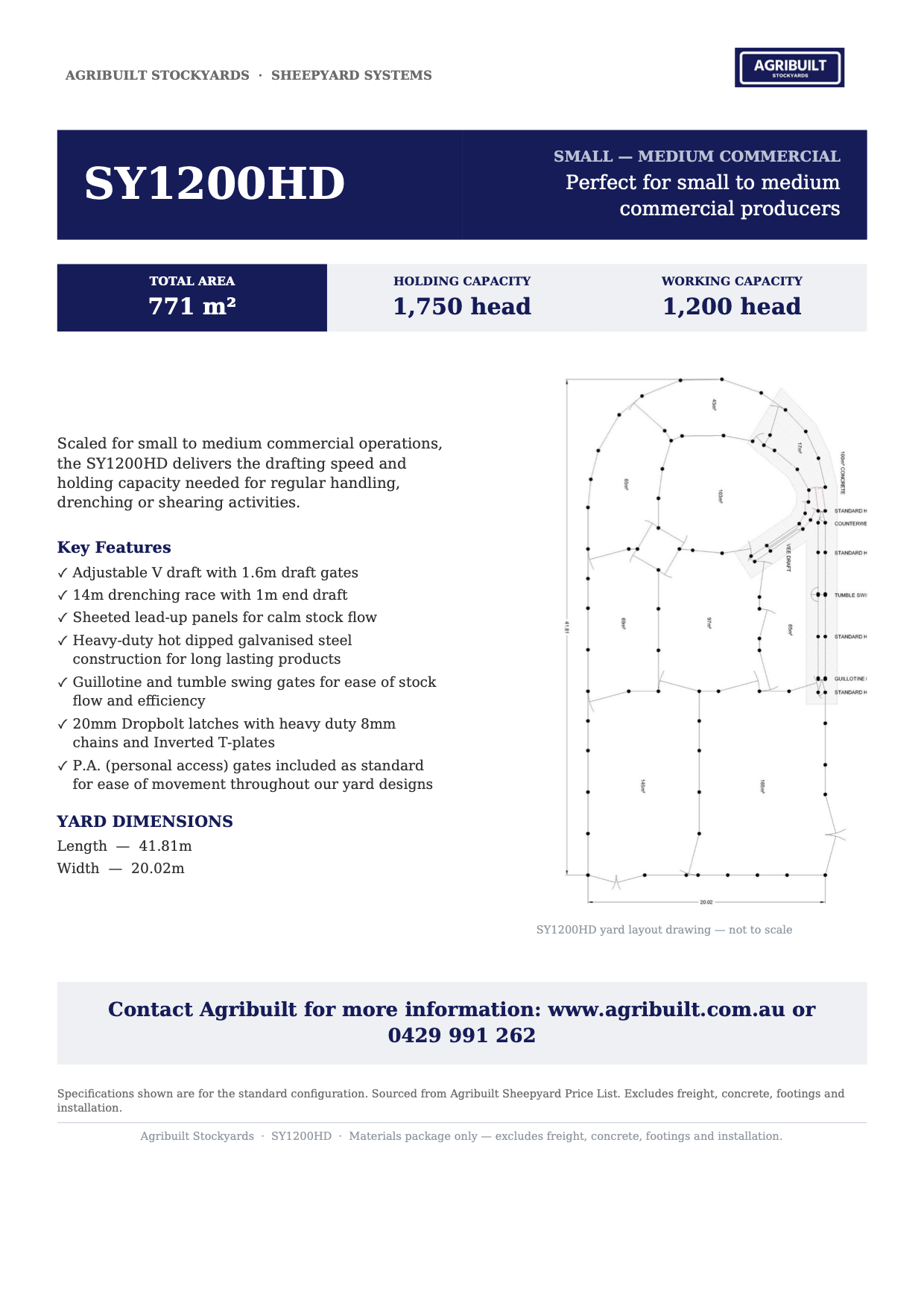

Sheep yards designs

Agribuilt offers a broad range of sheep yard designs from 400 head to 2400 head capacity, covering the needs of the majority of livestock producers.

If you’ve got a design in mind, our custom design service means we can work with you to tailor a yard that suits your stock numbers, flow and working style. We’ll take the time to talk it through and make sure it fits your operation and your budget.

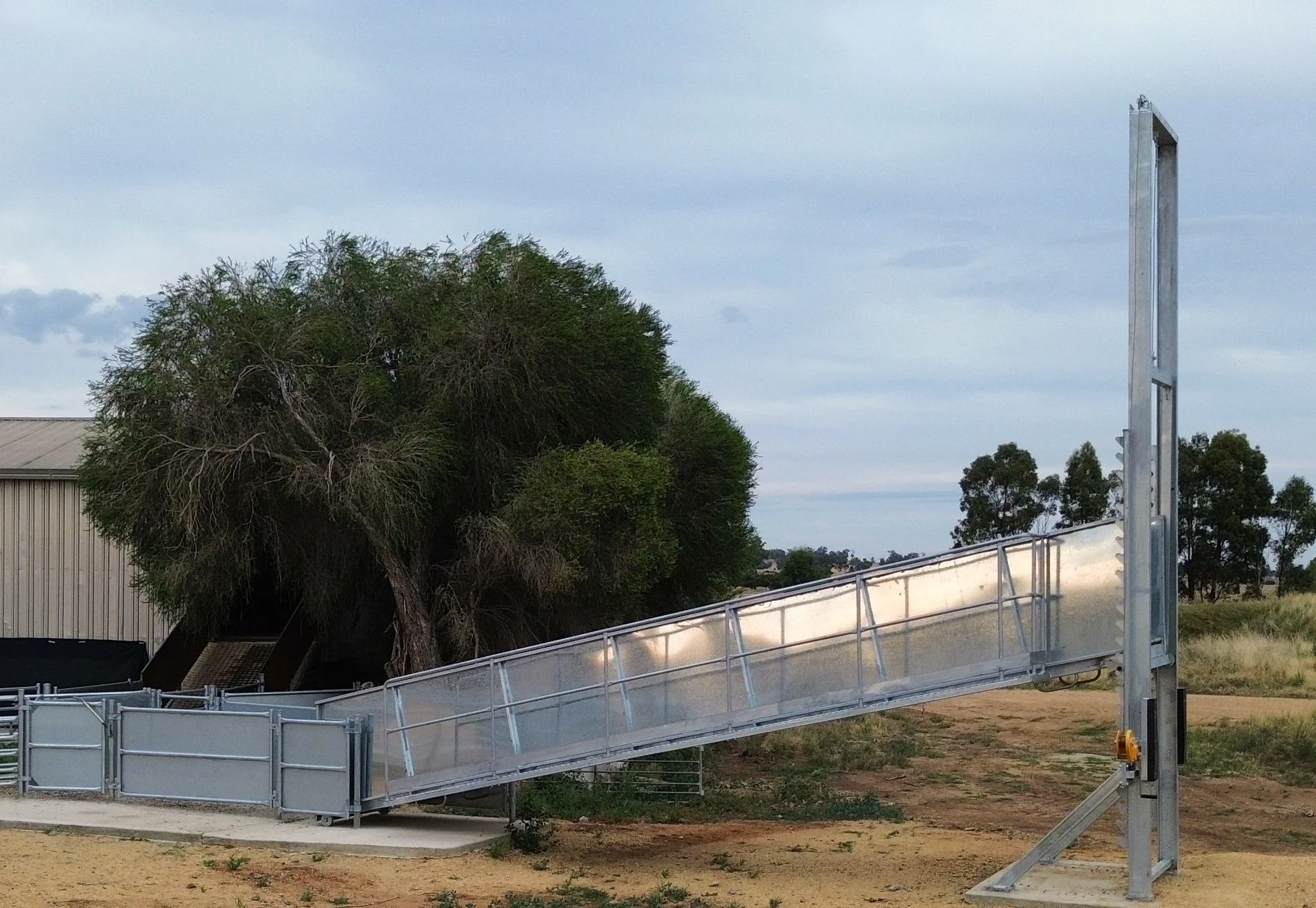

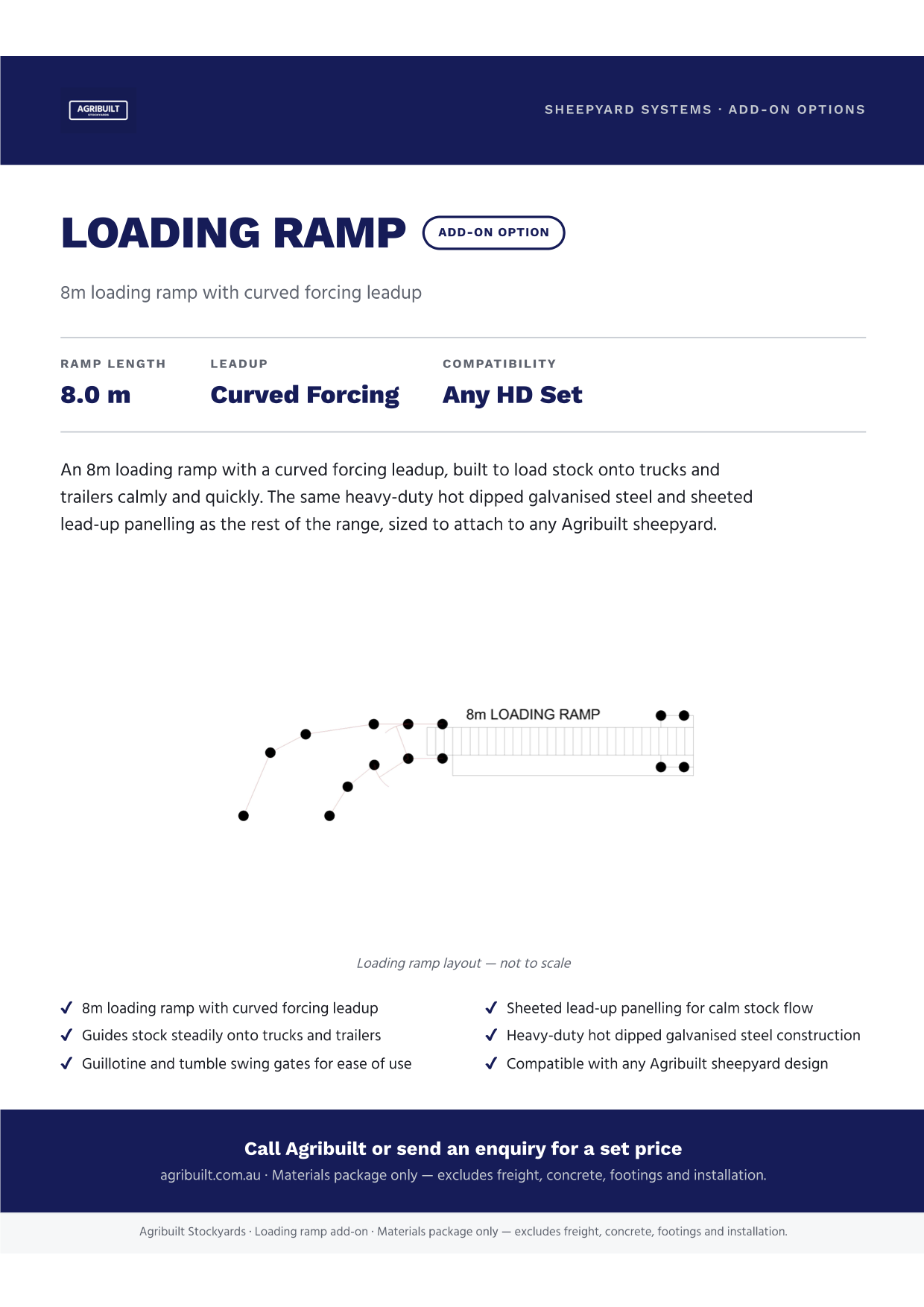

Loading ramps

Our ramps are tough, safe and easy to use — with anti slip floors to protect both livestock and handlers. If you’re looking to make loading more efficient and secure, these ramps are a great addition.

Yard covers

A good yard cover makes all the difference. Keep your stock and gear out of the weather and work in comfort year round. Built tough for Aussie conditions, our covers are a practical upgrade for any yard.

We take pride in supplying quality livestock equipment at competitive prices, with a strict quality control process in place to make sure everything we supply is tough, reliable and built to last.

Australian Owned & Operated stockyards
